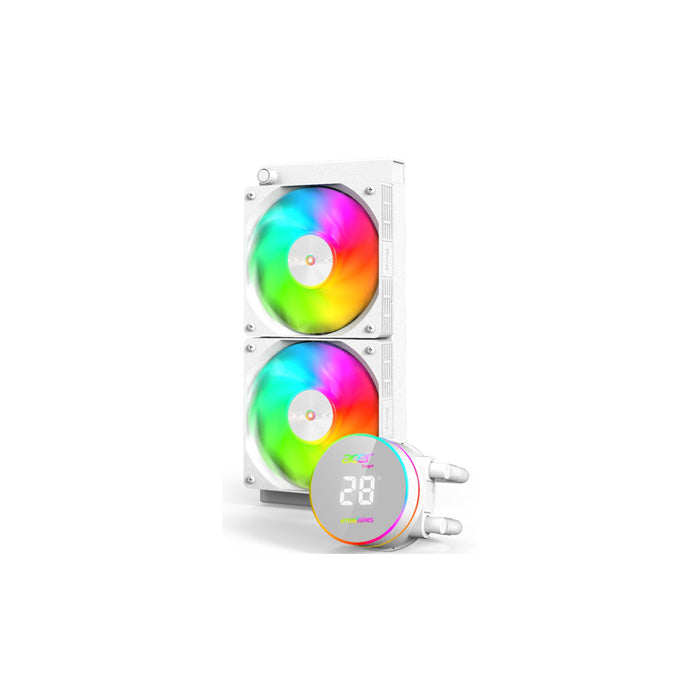

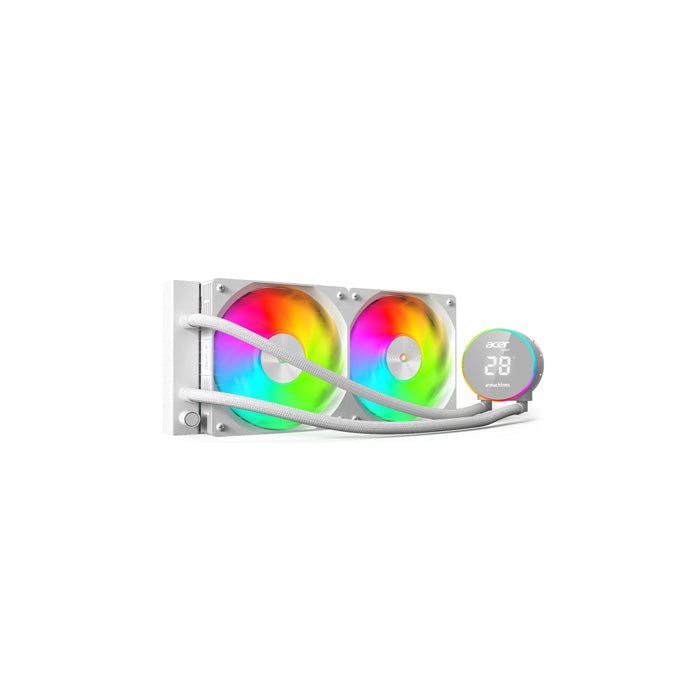

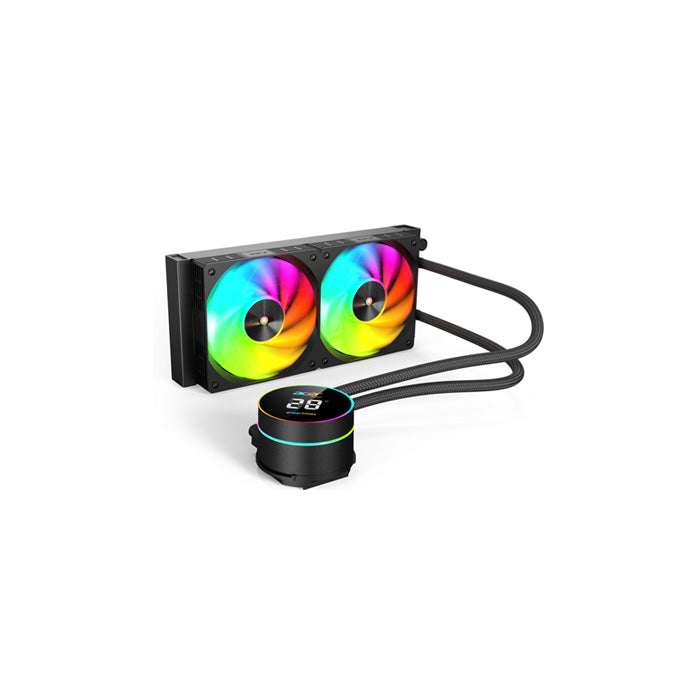

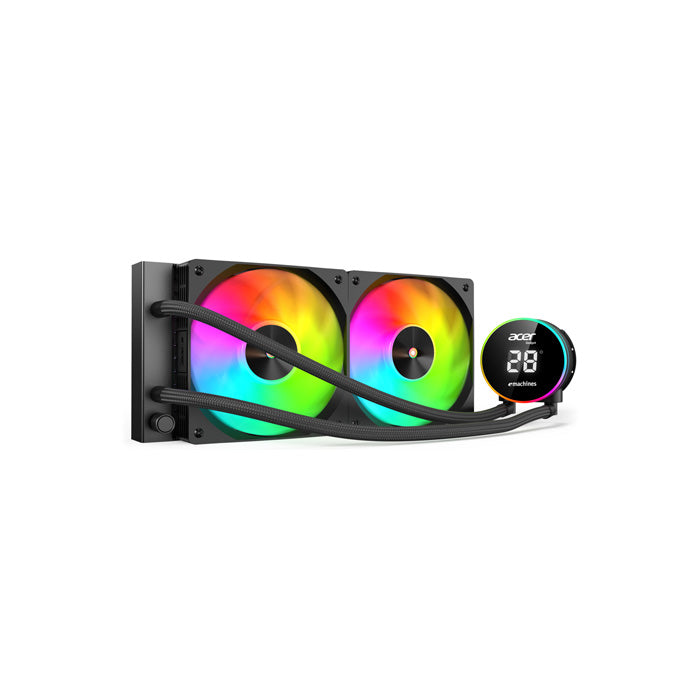

| Model# | AC240 |
| Applicable CPU | AMD Socket: |
| FM2/ FM1/ AM3+/ AM3/ AM2+/ AM2/ AM4/ AM5 | |
| INTEL Socket: | |
| LGA 115X/ 1700/ 1851/1366/ 2011 | |
| Radiator dimension | 275*120*27MM |
| Material of radiator | Aluminum |
| Length of coolant tubes | 360mm |
| Material of coolant tubes | EPDM+NBR |
| Pump head dimension | 68.5*89*55mm |
| Rated voltage for pump | 12V DC |
| Rated current for pump | 0.25A |
| Power consumption of pump | 3W |
| Pump speed | 2800RPM±10% |
| Noise level of pump | ≤15dBA |
| Pump Lift | 2M |
| Motor Flow | 220L/ H |
| Fan dimension | 120*120*25MM |
| Fan speed | 800~2300RPM |
| Max air flow | 76.6CFM |
| Noise level of fan | 20-36dB(A) |
| Rated voltage for fan | 12V DC |
| Rated voltage for LED | 5V DC |
| Rated current for fan | 0.25A+0.2A |
| Power consumption of fan | 4W |
| Fan connector | PWM4pin+ ARGB 3pin |
| TDP | 280W |
| Color box dimension | 339*201*141mm |
| Net weight | 1.10kg |
| What's in the box? | Pump + Rediator |
| Fan x 2 | |
| User Manual |
