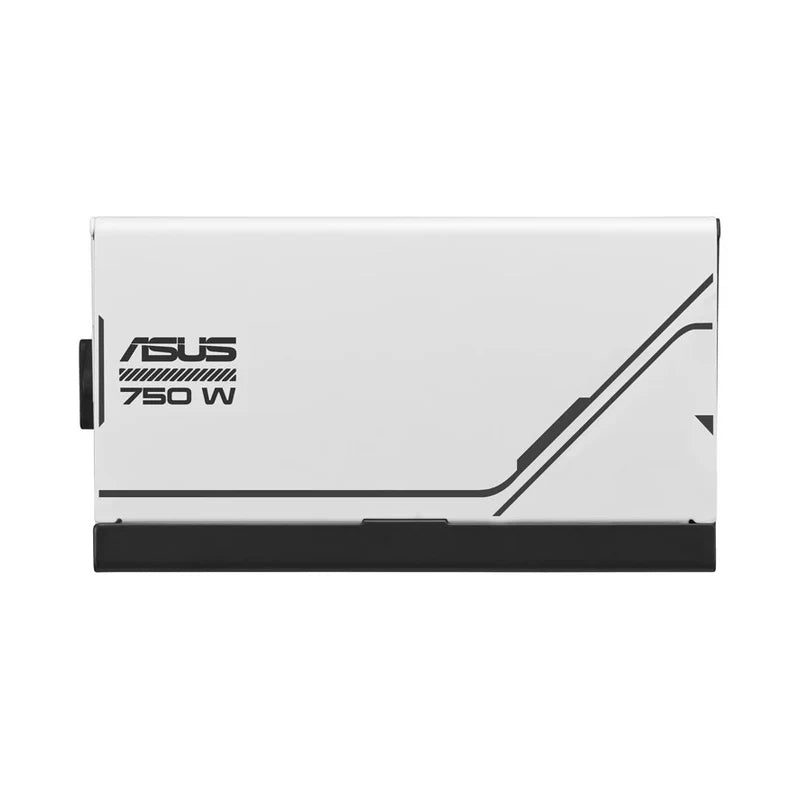

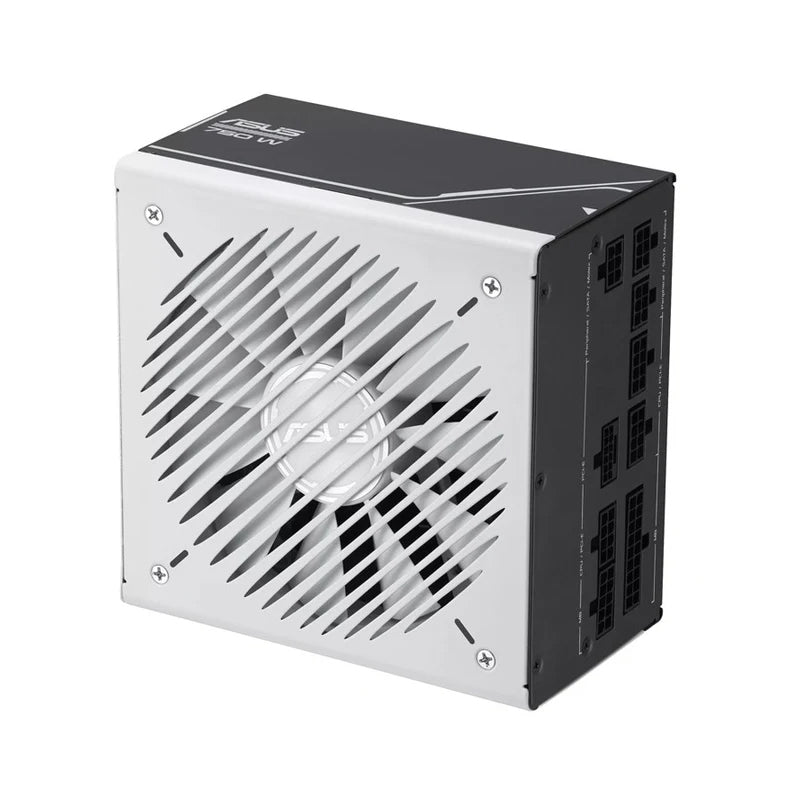

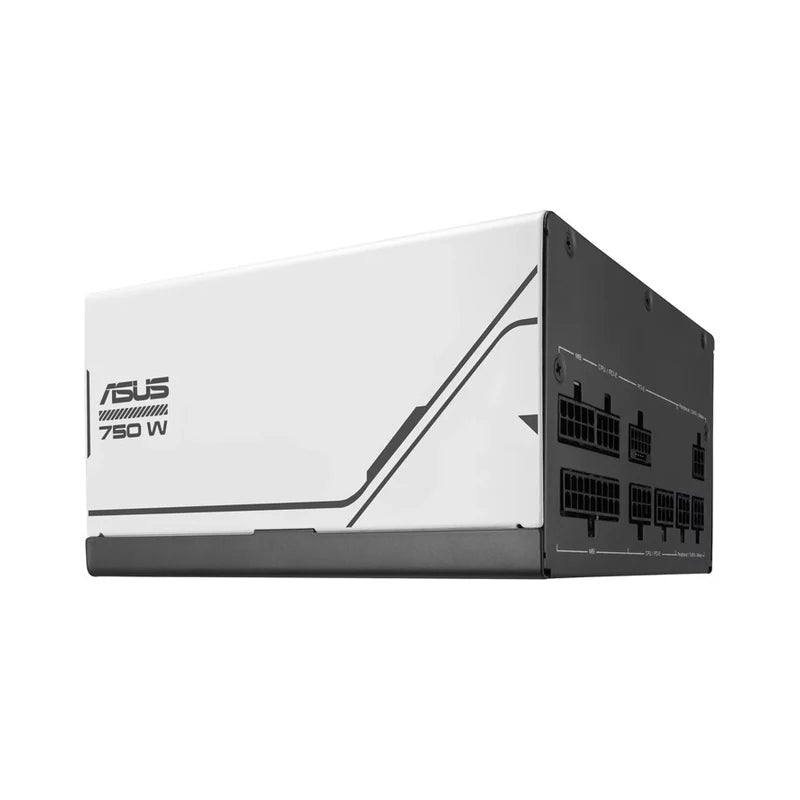

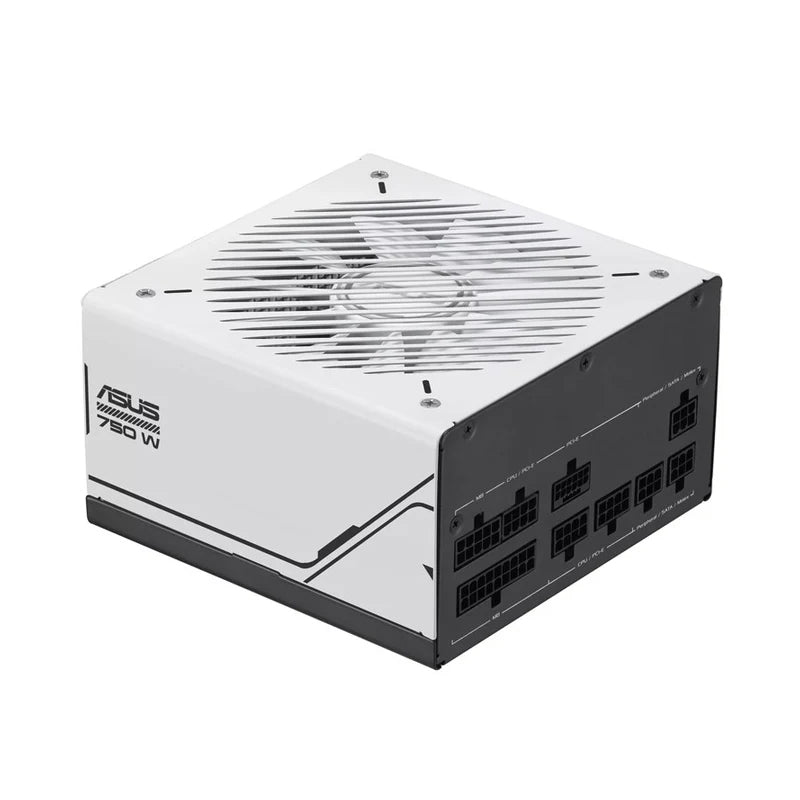

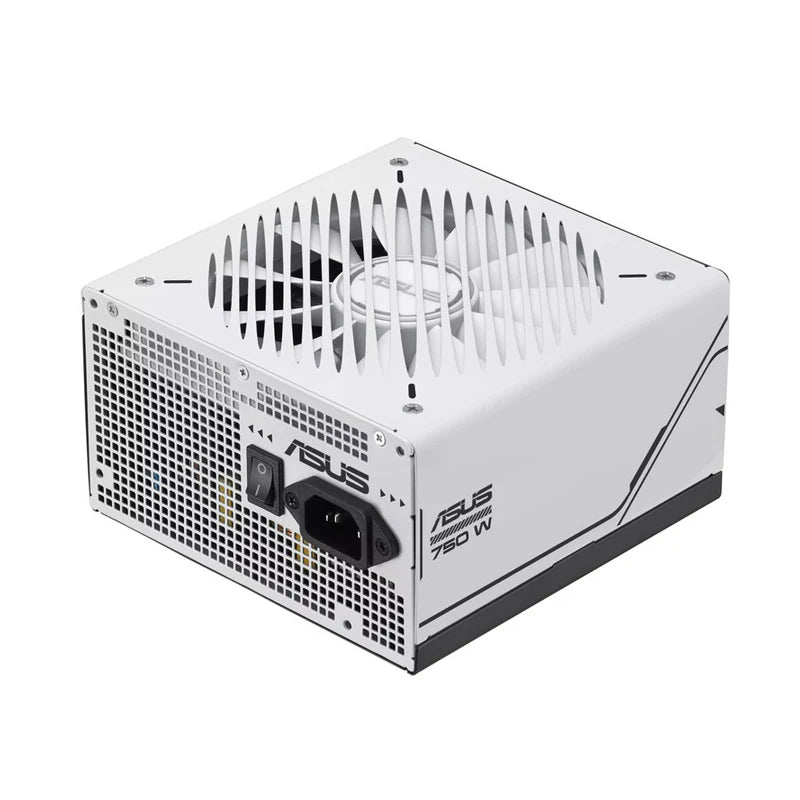

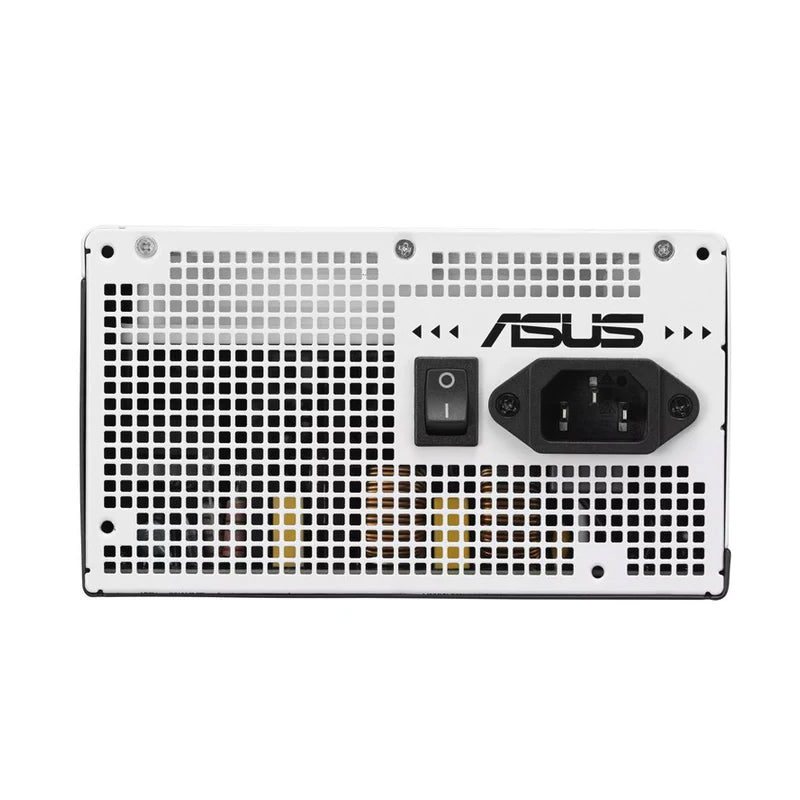

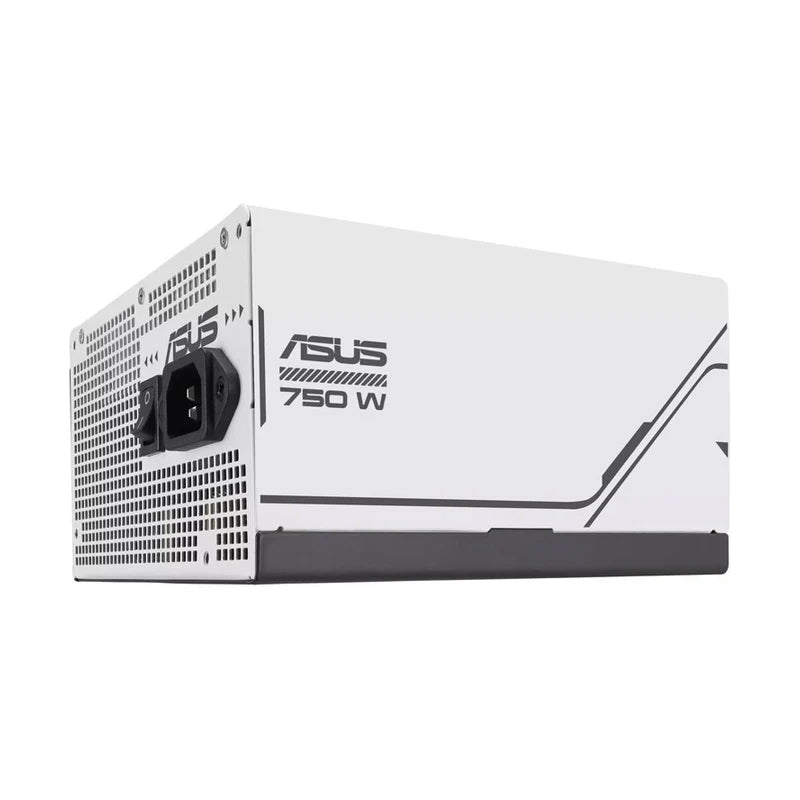

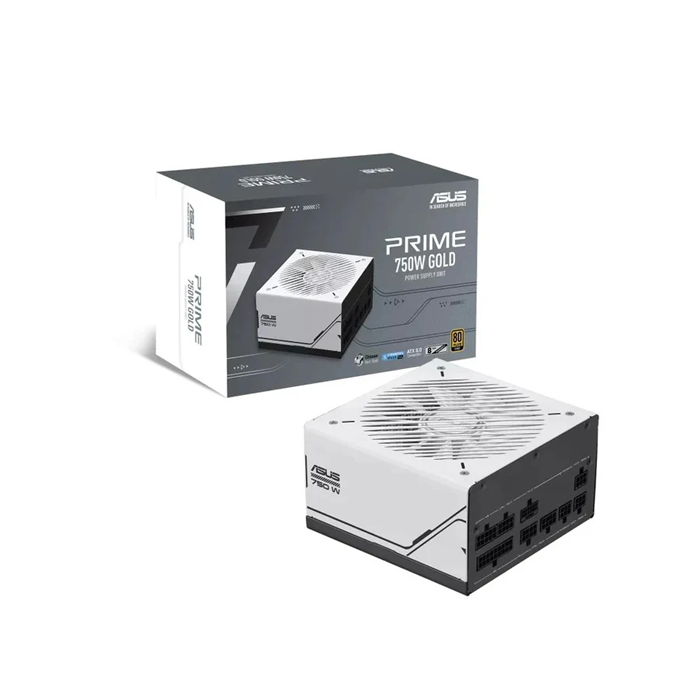

ASUS PRIME 750W 80 Plus Gold Fully Modular Power Supply
  • 36.380 KD

ASUS

ASUS PRIME 750W 80 Plus Gold Fully Modular Power Supply

Sale Sold out Pre-order
Regular price 36.380 KWD
Regular price Sale price 36.380 KWD

SKU: 90YE00U1-B0NA00

Low stock - 1 item left
Ask a question
  • All orders are dispatched the next business day!

  • We will beat any price. We back all products with a 1 year guarantee.

Description
Item Specifics

Prime Performance

With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.

Dual Ball Fan Bearings

Dual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. Ensuring long-lasting, reliable cooling with minimal noise for ASUS Prime Gold series.

80 Plus Gold Certification

The ASUS Prime 750W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.

ATX 3.0 Compatible

The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 750W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.

Choose Your Style

Two sides of the housing are painted white, and two sides are painted black, allowing you to orient the PSU to match your preferred build theme.

Specifications:
Model AP-750G
Intel Form Factor ATX12V
PFC Type Active PFC
ATX Standard ATX 3.0
Dimensions 150 x 150 x 86 mm
Efficiency 80Plus Gold
MTBF >120,000 hrs @ 25°C
Protection Features OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials ROHS
AC Input Range 100-240Vac
DC Output Voltage +3.3V +5V +12V -12V +5Vsb
Maximum Load 20A20A62A 0.3A 2.5A
Combined Load 110W 110W 744W 3.6W 12.5W
Total Output 750W
Cable Connectors MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & connector side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 3
Package Contents Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
User Manual x 1
Weight 1.466 kg (single PSU)
0dB Technology No
0dB Fan Button No, this product is without 0dB technology.
