| Model |

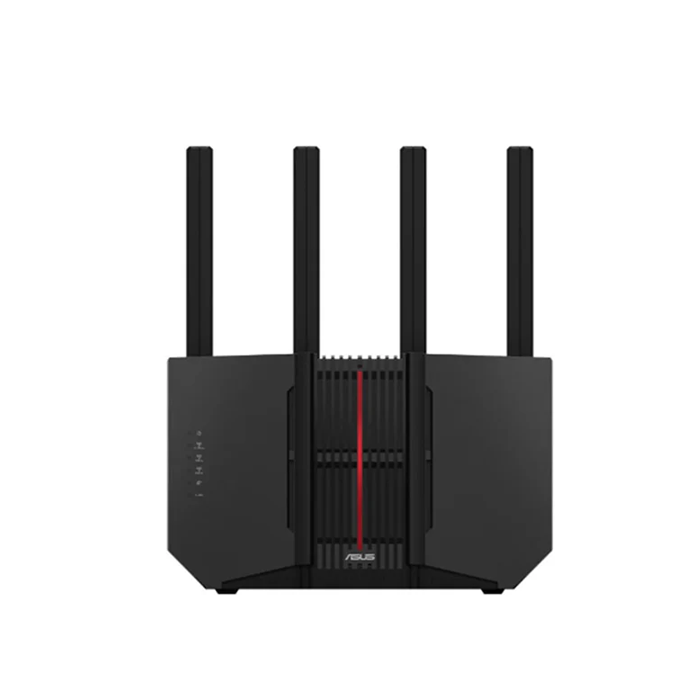

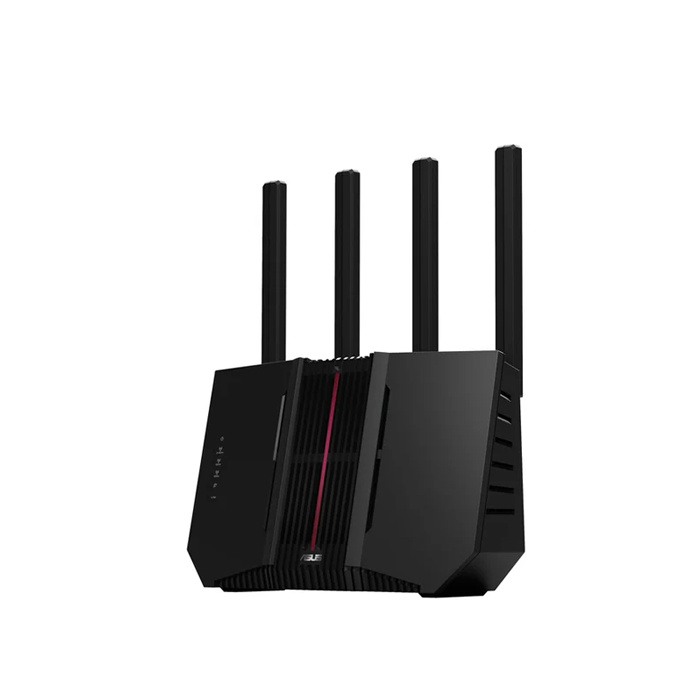

ASUS RT-BE92U |
| Network Standard |
IEEE 802.11a / IEEE 802.11b / IEEE 802.11g / WiFi 4 (802.11n) / WiFi 5 (802.11ac) / WiFi 6 (802.11ax) / WiFi 6E (802.11ax) / WiFi 7 (802.11be) / IPv4 / IPv6 |
| Product Segment |
BE9700 ultimate BE performance : 1032+2882+5764 Mbps |
| WiFi Data Rate |
WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
WiFi 7 (802.11be) (6GHz): up to 5764 Mbps
|

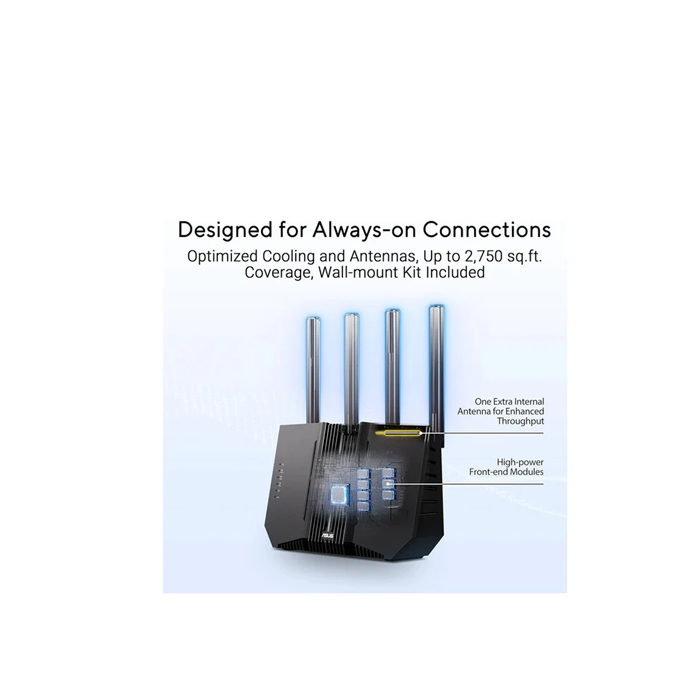

| Antenna |
External antenna x 4 |
| Transmit / Receive |
2.4GHz 3x3 / 5GHz 2x2 / 6GHz 2x2 |
| Processor |
2.0GHz quad-core processor |
| Memory |
256 MB Flash and 1 GB DDR4 RAM |
| Boosts Speed |
OFDMA (Orthogonal Frequency Division Multiple Access) / Beamforming: standard-based and universal / 4096-QAM high data rate / 20/40/80/160/320 MHz bandwidth |
| Operating Frequency |
2.4 GHz / 5 GHz / 6 GHz |
| Operating Mode |
Wireless Router Mode / AiMesh Node Mode / Access Point Mode / Media Bridge Mode / Repeater Mode |
| I/O Ports |
1 x 10Gbps for WAN/LAN / 1 x 2.5Gbps for WAN/LAN / 3 x 2.5 Gbps for LAN / USB 3.2 Gen1 x1 |
| Buttons |
WPS Button, Reset Button, Power Switch |
| LED Indicator |
Power x1 / WAN x1 / LAN x1 / 2.4GHz x1 / 5GHz x1 / 6GHz x1 |
| Power Supply |
AC Input: 110V~240V(50~60Hz) / DC Output: 12 V with max. 3 A current |
| Package Content |
RT-BE92U WiFi 7 Tri-band Router / wall mount kit / RJ-45 cable / Power Adapter / Quick Start Guide / Warranty Card |
| Product Dimensions |
247.18 x 101.59 x 287.47 mm / 9.73 x 4.00 x 11.32 inch |
| AiMesh |
AiMesh / Primary AiMesh Router / AiMesh Node |
| Parental Control |
"Allow you to block access to unwanted websites and apps." / Web & Apps Filters / Time Scheduling / Safe Browsing / Customized Internet Schedule / Maximum Parental Control Profile : 64 / Maximum Parental Control Content Cilter Rule : 64 |
| Guest Network |
"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings." / Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3 / Guest Network Pro Encryption : Open system, WPA/WPA2/WPA3-Personal |
| Security |
AiProtection / VPN / WPA/WPA2/WPA3 Personal / WPA/WPA2/WPA3 Enterprise / Open System & OWE / WPS / Let's Encrypt / DNS-over-TLS / SSH / Security Scan / Firewall / Maximum Firewall Keyword Filter : 64 / Maximum Firewall Network Service Filter : 32 / Maximum Firewall URL Filter : 64 |
| AiProtection |
AiProtection Pro / Router Security Assessment / Malicious Site Blocking / Two-Way IPS / Infected Device Prevention and Blocking |
| VPN |
Instant Guard / VPN Client L2TP / VPN Client Open VPN / VPN Client PPTP / VPN Client WireGuard / VPN Server IPSec / VPN Server Open VPN / VPN Server PPTP / VPN Server WireGuard / VPN Fusion / Support Surfshark |
| Traffic Control |
Adaptive QoS / Bandwidth Monitor / Bandwidth Limiter / Maximum Bandwidth Limiter Rule : 32 / Traditional QoS / Traffic Monitor / Real-time Traffic Monitor / Wired Traffic Monitor / Wireless Traffic Monitor / Traffic Analyzer / Traffic Analysis Period : Daily, Weekly, Monthly / Website History |
| WAN |
Internet Connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, IPSec / Dual WAN / 3G / 4G LTE dongle / 4G / 5G Auto Mobile Tethering / Port forwarding / Maximum Port Forwarding Rule : 64 / Port triggering / Maximum Port Triggering Rule : 32 / DMZ / DDNS / NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE Relay |
| LAN |
DHCP Server / IGMP Snooping / IPTV / LAN Link Aggregation / Manually Assign IP Address / Maximum Manually Assign IP Address Rule : 128 / Wake on LAN (WOL) |
| Wireless |
MU-MIMO / UTF-8 SSID / WiFi MAC Address Filter / Maximum MAC Filters : 64 / Wireless Scheduler / Airtime Fairness / RADIUS Client / Universal Beamforming / Explicit Beamforming |
| USB application |
4G / 5G Auto Mobile Tethering / File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 / Safely Remove Disk / AiCloud / Download Master / AiDisk / Media Server / Time Machine / Samba Server / FTP Server / Shared Folder Privileges |
| User Interface |
WEB: ASUSWRT / APP: ASUS Router APP |
| Administration |
Configuration Backup and Restore / Diagnosis tools / Feedback System / System Log / New Device Connect Notification / Login Captcha / Connection Diagnosis / Auto Firmware Update |
