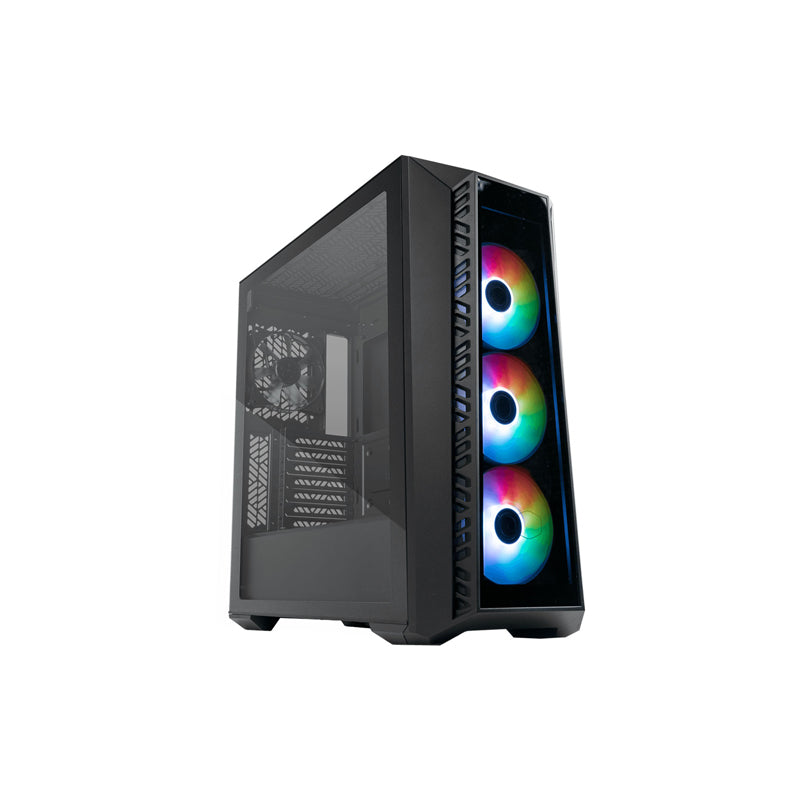

Cooler Master MasterBox MB520 Mesh ARGB ATX Mid Tower Case
Cooler Master MasterBox MB520 Mesh ARGB ATX Mid Tower Case
SKU: MB520-KGNN-S00
Have a question?
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Couldn't load pickup availability

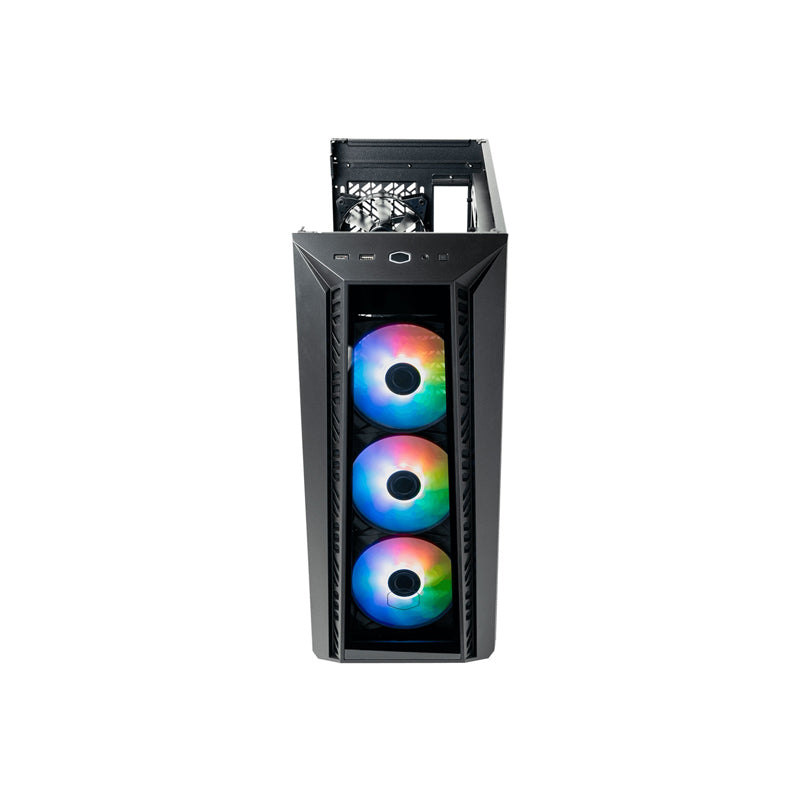

REMOVABLE TOP PANEL
The top panel is entirely removable for improved access and easy installation of cooling solutions such as fans and radiators.
SCREWLESS & TOOL-FREE TG SIDE PANEL
The tempered glass side panel is secured with pins for easy removal, facilitating quick, easy installation.
(RE)MOVABLE HDD CAGE
The HDD cage is completely (re)movable for improved access during assembly and system upgrades.
UPGRADED REMOVABLE DUST FILTER BRACKET
The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.
RICH CONNECTIVITY
The I/O panel comes with a USB 3.2 (Gen 2) Type-C port, a USB 3.2 (Gen 1) Type-A port, and one 3.5mm (audio + mic) headset jack.
HARDWARE COMPATIBILITY
MasterBox 520 Mesh is natively compatible with ITX, M-ATX and ATX motherboards.
E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12" x 10.7".
Specifications:
| Color | Black |
| Case Material | Mesh, Steel, ABS Plastic, Tempered Glass |
| Case Size | 499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body size) |
| Lighting | RGB |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature) |
| Pre-installed Fans | Pre-installed Fans - Top N/A Pre-installed Fans - Front 3x CF120 ARGB Pre-installed Fans - Rear N/A |
| Additional Fan Support | Fan Support - Top 3x 120mm, 2x 140mm Fan Support - Front 3x 120mm, 2x 140mm Fan Support - Rear 1x 120mm |
| Radiator Support | Radiator Support - Top 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm) Radiator Support - Front 120 / 140 / 240 / 280 / 360mm Radiator Support - Rear 120mm |
| SSD/HDD Support | Expansion Slots 7 3.5" Drive Bays 2 2.5" Drive Bays 3 |
| I/O Ports | I/O Panel - USB Ports 1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 Type C I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic) I/O Panel - Other 1x Reset/ARGB button |
| CPU Cooler Limitation | 165mm |
| VGA Limitation | 410mm |
| PSU Limitation | 200mm (Recommended up to 170mm) |
| Dust Filters | Front, Top, Bottom |
| Product Size ( Dimension ) | 499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body size) |
| Package Content | Case & Cables |
