GIGABYTE

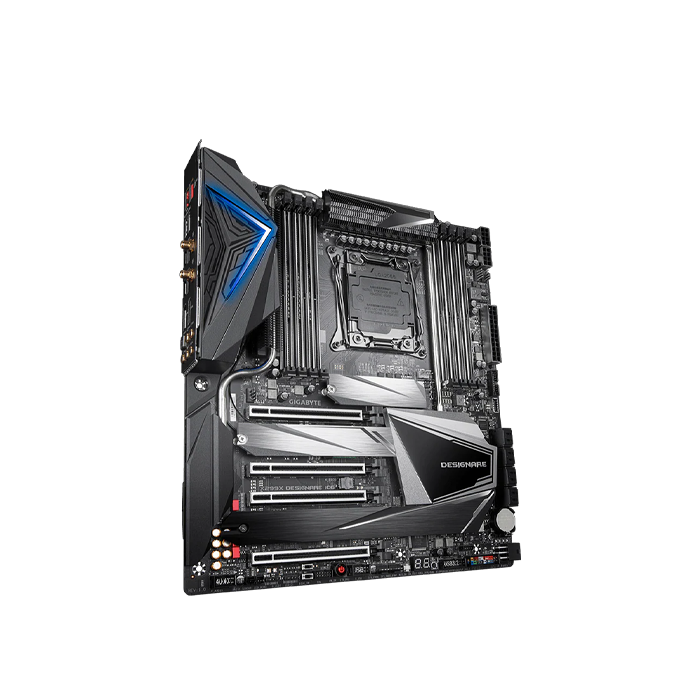

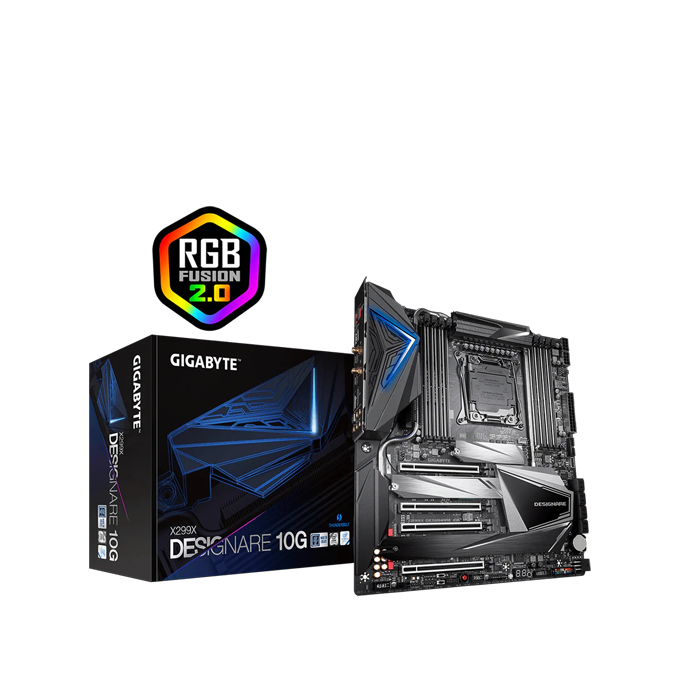

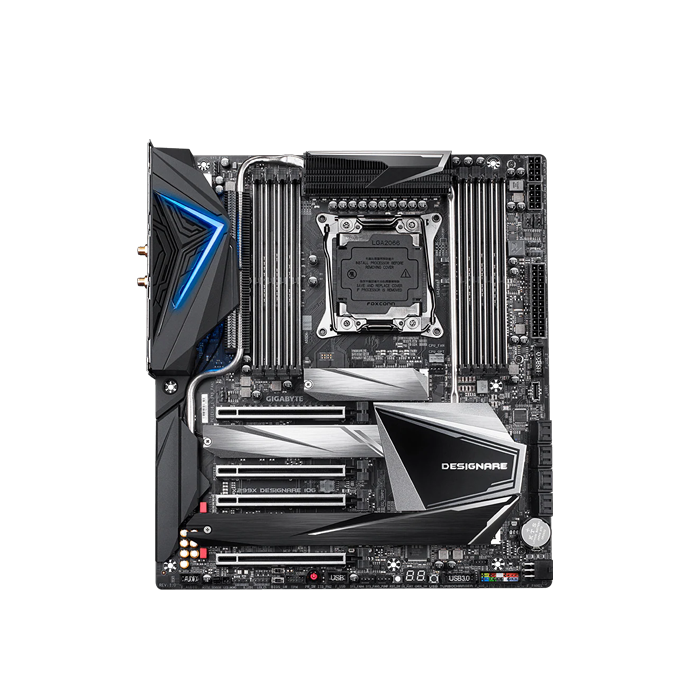

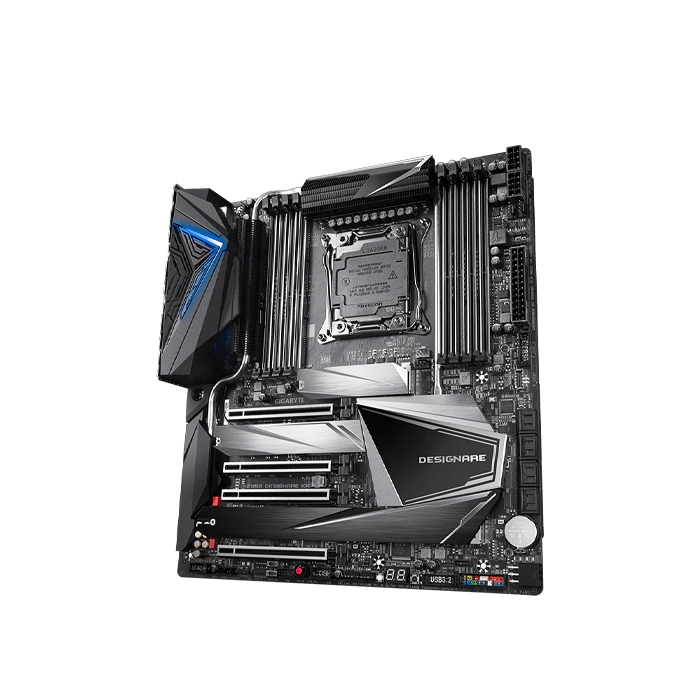

GIGABYTE X299X DESIGNARE 10G E-ATX Motherboard - Black

GIGABYTE X299X DESIGNARE 10G E-ATX Motherboard - Black

SKU: X299XDESIGNARE10G

Sale Sold out
69.000 KWD
69.000 KWD

In stock

Add 10.000 KD more to get FREE SHIPPING!
0.000 KD
Key Features
Shipping Info & Warranty
  1. Support for Intel® Core i7-7800X and above X series processors/ Intel® Core i9 X series processors in the LGA2066 package
  2. L3 cache varies with CPU
  3. Intel® X299 Express Chipset

Delivery Charges by Area (Same-Day Delivery)

  1. Al Ahmadi - 4 KWD
  2. Al Asimah - 2 KWD
  3. Al Farwaniyah - 2 KWD
  4. Al Jahra - 5 KWD
  5. Hawalli - 1.5 KWD
  6. Mubarak Al-Kabeer - 3 KWD

Store Pickup: Free

Next-Day Delivery: Free

Orders above 10 KWD: Free Delivery (any area)

Warranty: 1 Year (As per Manufacturer Policy)

Key Features

Shipping Info & Warranty

View the full product details
Description

Gigabyte X299X DESIGNARE 10G Motherboard

Intel® X299 Made To Create Motherboard with 12 Phases IR Digital VRM, Intel® Thunderbolt 3, Intel® X550-AT2 Dual 10GbE, Intel® WiFi 6 AX200 802.11ax, ALC1220-VB HD Audio with WIMA, AORUS Gen4 AIC Adaptor

12 Phases IR Digital VRM Solution with 70A Power Stage

To unleash the full power of the new Intel 18 core CPU, the motherboard demands un-precedented strong power solution. GIGABYTE R&Ds selects the best components and never stop pursuing the highest overclock performance. That makes X299X DESIGNARE 10G an un-beatable motherboard in the market.

Smart Fan 5

With Smart Fan 5 users can ensure that their PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

ALC1220-VB Immersive Gaming ViBes

All New Realtek High-End HD Audio Codec

ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion. With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

Integrated I/O Shield Armor

Durable Design And Easy Installation

With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier and convenient. Users can expect excellent durability with the durable design of the pre-installed I/O shield.

New User Interface

All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

Optimized Memory Installation Reminder

Displays correct installation reminder message when user installs two memory modules but runs single channel mode.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.
Specification:
CPU Support for Intel® Core i7-7800X and above X series processors/ Intel® Core i9 X series processors in the LGA2066 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset Intel® X299 Express Chipset
Memory Intel® Core X series 48-lane processors:
8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933/2666/2400/2133 MHz memory modules

Intel® Core X series 44-lane/28-lane processors:
8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory
Support for DDR4 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666/2400/2133 MHz memory modules

4 channel memory architecture
Support for non-ECC Un-buffered DIMM memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Intel® Thunderbolt 3 Controller:
2 x Intel® Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 4096x2304@60 Hz
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed.
* Support for DisplayPort 1.4 version.

Maximum shared memory of 1 GB
Audio Realtek® ALC1220-VB codec
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN Intel® 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit), supporting 2 RJ-45 ports
Wireless Communication module Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.0
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Expansion Slots Intel® Core X series 48-lane processors:
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
* The PCIEX8_1 slot shares bandwidth with the M2M connector. The PCIEX8_1 slot operates at up to x4 mode when an SSD is installed in the M2M connector.

Intel® Core X series 44-lane processors:
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
1 x PCI Express x16 slot, running at x8 (PCIEX8_2)
1 x PCI Express x16 slot, running at x4 (PCIEX8_1)
* The PCIEX8_1 slot shares bandwidth with the M2M connector. The PCIEX8_1 slot becomes unavailable when an SSD is installed in the M2M connector.

Intel® Core X series 28-lane processors:
1 x PCI Express x16 slot, running at x16 (PCIEX16_1)
1 x PCI Express x16 slot, running at x8 (PCIEX16_2)
1 x PCI Express x16 slot, running at x4 (PCIEX8_1)
* The PCIEX8_1 slot shares bandwidth with the M2M connector. The PCIEX8_1 slot becomes unavailable when an SSD is installed in the M2M connector.

(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI technologies
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M)

Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q)
6 x SATA 6Gb/s connectors (SATA3 0, 1, 4, 5, 6, 7)

Support for RAID 0, RAID 1, RAID 5, and RAID 10
* The M2M connector must work with an Intel® VROC Upgrade Key to support RAID configuration.
* Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX8_1, M.2, and SATA connectors.

Intel® Optane Memory Ready
* Only Intel® Core X series 48-lane processors support Intel® Optane Memory.

Intel® VROC Ready

ASMedia® SATA 6Gb/s controller:
2 x SATA 6Gb/s connectors (SATA3 2, 3), supporting AHCI mode only
USB Chipset+Intel® Thunderbolt™ 3 Controller:
2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support

Chipset+ASMedia® USB 3.2 Gen 2 controller:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

Chipset+Genesys USB 3.2 Gen 1 hub:
3 x USB 3.2 Gen 1 ports on the back panel

Chipset:
5 x USB 3.2 Gen 1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x VGA_PW power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x Intel® VROC Upgrade Key header
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x noise detection header
1 x Clear CMOS jumper
1 x power button
1 x reset button
1 x Clear CMOS button
2 x temperature sensor headers
2 x BIOS switches
Back Panel Connectors 2 x DisplayPort In ports
2 x Thunderbolt 3 connectors (USB Type-C ports, with USB 3.2 Gen 2 support)
2 x SMA antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks
I/O Controller iTE®I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart Survey
System Information Viewer
USB Blocker
USB TurboCharger

Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton® Internet Security (OEM version)
cFosSpeed
XSplit Gamecaster + Broadcaster (12 months license)
Operating System Support for Windows 10 64-bit
Form Factor E-ATX Form Factor; 30.5cm x 27.5cm
