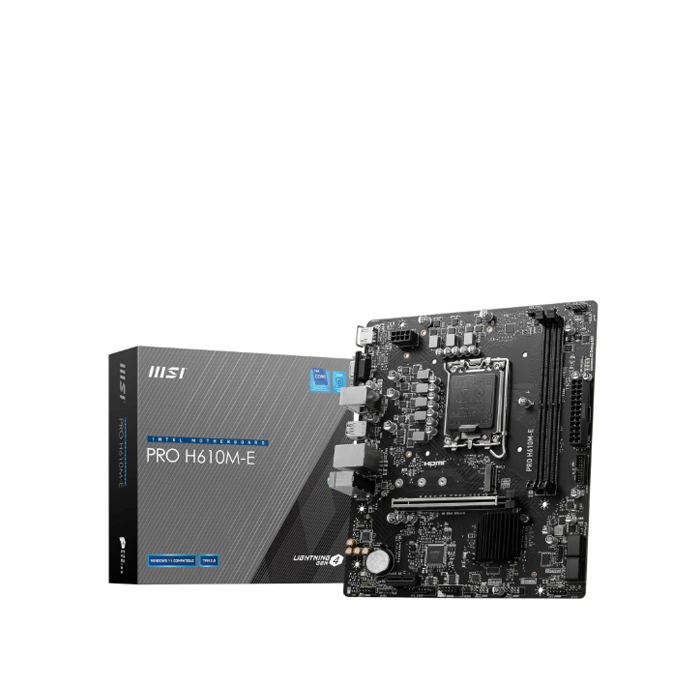

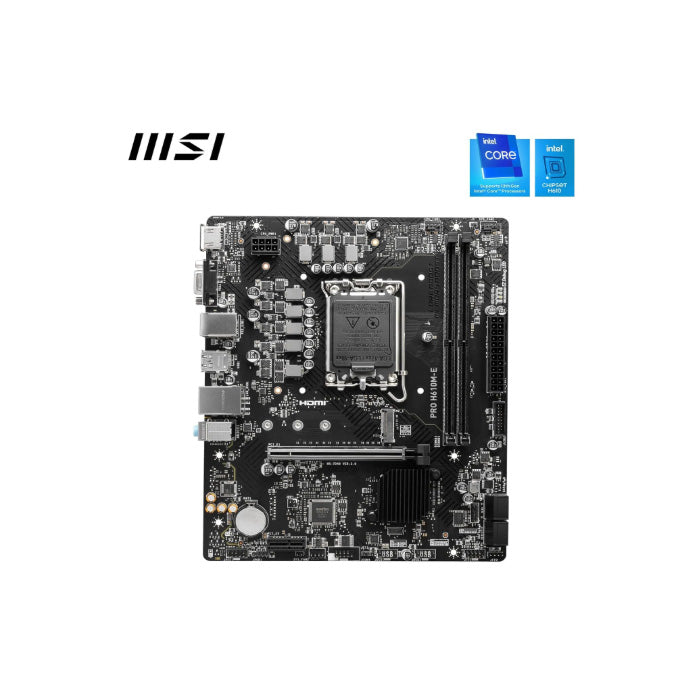

MSI Intel Pro H610M-E D5 Motherboard

MSI Intel Pro H610M-E D5 Motherboard

Reliable Performance for Intel Desktop Processors

The MSI Intel Pro H610M-E D5 is designed for stability and efficiency, supporting Intel 12th, 13th, and 14th Gen processors, DDR5 memory, and providing essential features for professional and office setups.

Next-Gen CPU Support

Supports Intel Core 12th, 13th, and 14th Gen, Pentium Gold, and Celeron processors on LGA1700 socket with Intel Turbo Boost 2.0 and Turbo Boost Max 3.0 (CPU dependent).

Memory Support

2 x DIMM slots supporting up to 96GB DDR5 (4800-5600 MHz) Non-ECC, Un-buffered Memory in dual channel architecture with Intel XMP support.

Graphics Support

1 x VGA port and 1 x HDMI 2.1 port supporting 4K at 60Hz (CPU dependent).

Expansion Slots

1 x PCIe 4.0 x16 slot (CPU), 1 x PCIe 3.0 x1 slot (chipset).

Storage Options

1 x M.2 slot (Key M, PCIe 3.0 x4) and 4 x SATA 6Gb/s ports with Realtek 1Gb Ethernet.

USB Ports

Rear: 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A. Front Headers: 1 x USB 3.2 Gen 1 header (2 additional ports), 1 x USB 2.0 header (1 additional port).

Audio

Realtek 7.1 HD Audio CODEC with jack detection, multi-streaming, front panel retasking, 24-bit/192kHz playback, audio shielding, and premium capacitors.

Cooling

1 x CPU fan header (4-pin) and 2 x chassis fan headers (4-pin) for optimal thermal management.

Power

1 x 24-pin ATX connector and 1 x 8-pin +12V connector for stable system power.

Special Features

ASUS 5X Protection III, Q-Design features (Q-DIMM, Q-LED Core, Q-Slot), aluminum heatsink, and Aura Sync with Gen 2 RGB headers.

Software Features

Armoury Crate, AI Suite 3, ASUS CPU-Z, Norton 360 Deluxe (60-day trial), WinRAR, CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode.

Accessories

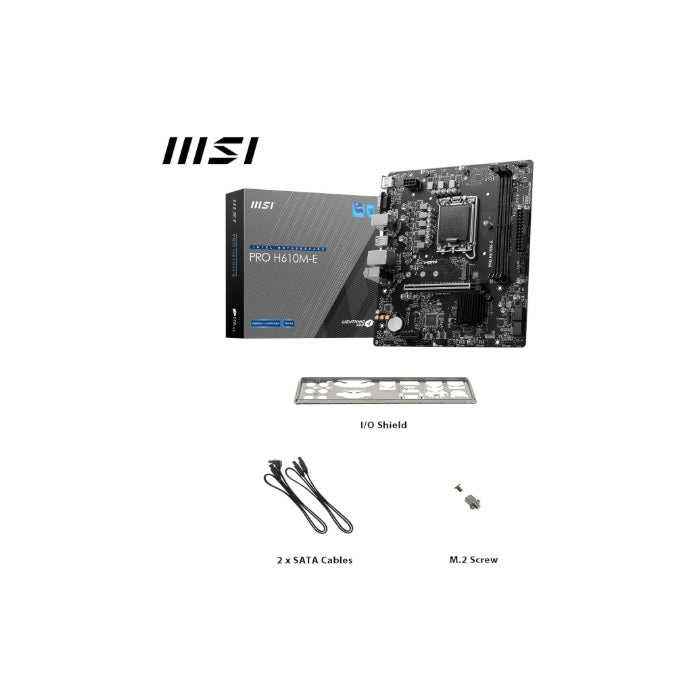

2 x SATA 6Gb/s cables, 1 x I/O shield, 1 x M.2 anchor, 1 x User guide. Supports Windows 10 & 11 64-bit.

Form Factor

micro-ATX, Dimensions: 9.2 x 8.0 inches (23.4 x 20.3 cm)
